제목 STAR-Dundee 사 SpaceWire Conformance Tester Mk2를 소개드립니다.
이름 관리자 날짜 2021.07.26 조회수 120
첨부파일 SpaceWire-Conformance-Tester-Mk2.pdf

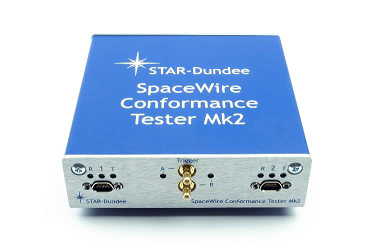

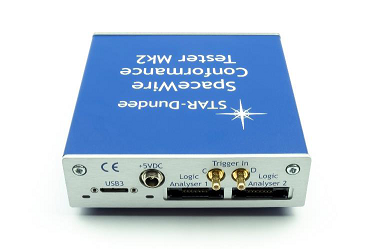

The SpaceWire Conformance Tester Mk2 connects to a SpaceWire device and, through the host software, executes a variety of tests to check the unit under test’s (UUT) compliance to the SpaceWire Standard. It is supplied as a single instrument specifically designed to support hardware and software engineers developing and using SpaceWire systems. The SpaceWire Conformance Tester Mk2 comprises a SpaceWire interface unit and software running on a host PC. The unit is connected to the host PC by USB cable.








Product Features



▶ Tests a SpaceWire device’s compliance to the Standard with over 55 different tests.

 Simple connection to PC via USB 3.0 interface (compatible with USB 2.0), no need for additional power.

 Contains 2 x SpaceWire ports, 1 x USB 3.0 port.

 ​Easy to use software produces test reports, with pass or fail indication, expected and achieved results, and links to appropriate clauses in ECSS standard.

 Can act as sink or loop-back on second SpaceWire link.

 Software and accessories included:

 Windows drivers (Windows 10, 8, 7, Vista, XP)

 Linux drivers (4.x, 3.x and 2.6 kernels)

 Conformance Tester software

 User manuals

 USB cable

 1 year’s technical support and maintenance





Technical Specifications



 Size: 110 x 30 x 112 mm (excluding feet).

 Power: +5V DC, power brick supplied.

 SpaceWire Ports:

• Compliant to ECSS-E50-12A and ECSS-E-ST-50-12C.

• Maximum Speed: 400 Mbit/s.

 USB Port:

• Micro B USB 3.0 (compatible with USB 2.0).

• Type A to Micro B USB 3.0 Cable included.

 Trace Memory:

• 40 μs of Data/Strobe samples for trace display.

 ​EMC: CE/FCC certified.

​
