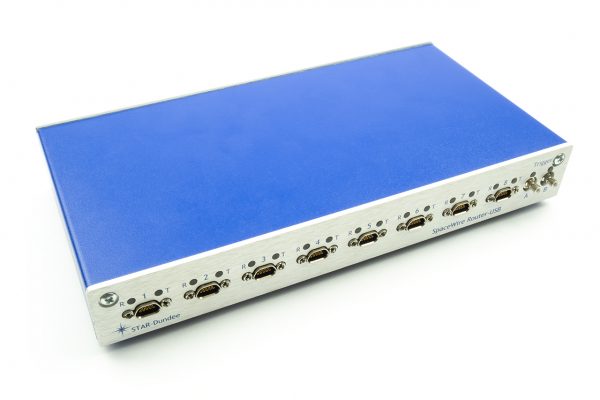

The SpaceWire Router Mk2S is a routing device that provides the essential capabilities now demanded of SpaceWire test and development equipment.

The SpaceWire Router Mk2S is suitable for all stages of SpaceWire equipment development: initial SpaceWire evaluation, instrument simulation, control system simulation, unit testing, integration support, and EGSE. It is functionally equivalent to the STAR-Dundee Router IP and the ESA radiation tolerant SpaceWire Router ASIC (AT7910E), available from Microchip.

The SpaceWire Router Mk2S provides eight SpaceWire interfaces, the ability to act as a time-code master, support for high speed data transfer, the capability to inject various types of errors on demand, and comes complete with highly optimised host software support for low latency transmission of SpaceWire packets directly to and from the host PC.

Expanding on the 10 years of knowledge and experience gained with the original SpaceWire Router-USB and Router Mk2, the SpaceWire Router Mk2S has new features to enhance its capability and has been migrated to support STAR-Dundee’s powerful software stack; STAR-System.​

​​​

​Product Features

● Improved interface mode

​● ​Independent data and configuration channels

● ​On demand error injection

● ​Link speed and state change event signalling

● ​Support for STAR-System software stack

● ​Provides a host PC with eight SpaceWire ports

● ​Simple connection to PC via USB 2.0 interface, can also act as stand-alone unit

● ​Contains 8 x SpaceWire ports, 1 x USB 2.0 port, 2 x external parallel ports, 1 x external time-code interface, 1 x internal configuration port

● ​Non-blocking crossbar switch connects any two ports

● ​High performance driver maintains high data rates from SpaceWire links directly into main memory of host PC

● ​Set ports to operate at any rate (2Mbps – 200Mbps) within 0.1Mbps accuracy in Precision Transmit Mode

● ​Occupies half a standard 19’’ rack (1U height)

● ​6U Front panels available

● ​Software and accessories included:

● Windows drivers (Windows 10, 8, 7, Vista, XP)

● Linux drivers (4.x, 3.x and 2.6 kernels)

● User manuals (including hardware, software, and API)

● USB cable (Type A to Type B)

● Mains power brick with appropriate power plug

● 1 year’s technical support and maintenance​

​

Technical Specs

● Size : 220 x 115 x 30 mm (approx.)

● ​Power : +5V DC, mains power brick supplied

● ​SpaceWire Ports

● ​Compliant to SpaceWire Standard ECSS-E-ST-50-12C (formerly ECSS-E50-12A) and provides support for RMAP (ECSS-E-ST-50-52C)

● ​Number of SpaceWire Ports : 8

● ​Maximum Speed: 200 Mbits/s

● ​Data-Strobe skew tolerance: tested on all units to ±3 ns at data rate of 200 Mbits/s

● ​Connectors : 9-pin micro-miniature D-type

● ​LVDS signalling: Using Xilinx LVDS

● ​USB Port : USB 2.0 (480 Mbits/s)

● ​EMC : CE/FCC Certified​
