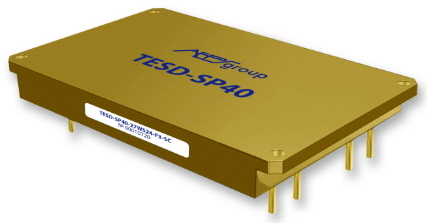

제목 AEPS 사 TESD-SP-40-F3 DC/DC 컨버터를 소개드립니다.
이름 관리자 날짜 2021.03.29 조회수 32
첨부파일 TESD-SP-40-F3.pdf   TESD-SP-40-F3.jpg

Description:



Power supply units for special application - space series TESD “SPACE” (TESD-SP) - are DC/DC converters of “SPACE” class in robust metal cases with mounting flanges and pin-side shielding.

The series retains pin-out and footprint dimensions of TESD and TESND series.

TESD-SP-40-F3 are the series of isolated DC/DC converters with no-optocoupler feedback and pin-side shielding

The units include additional input and output EMC filters.

Output power up to 40 Watts, power density up to 38 W/in3.

Operational in wide input voltage range and at wide temperature range of standard -60° to +110° C

The units feature a full system of protections and service functions including remote on/off and output voltage trimming.

Lack of internal empty spaces and materialswhich produce gases when used in vacuum, allows to apply TESD-SP units at heights up to "near-space".









Features:



Up to 40 W output power, 38 W/in3

• Feedback without optocoupling

• Output voltage possible up to 150 VDC on request

• Additional input and output filter (MIL-STD-461)

• Extreme case operating temp. range for request up to -60 ~ +130 °C

• Efficiency up to 90 %

48x33x11 (mm) aluminium case (dimensions without flanges) with pin-side shielding

• Input ranges:

   "27W" - (15-50 VDC) - Standard

• Output voltage adjustment

• Remote on/off

​
